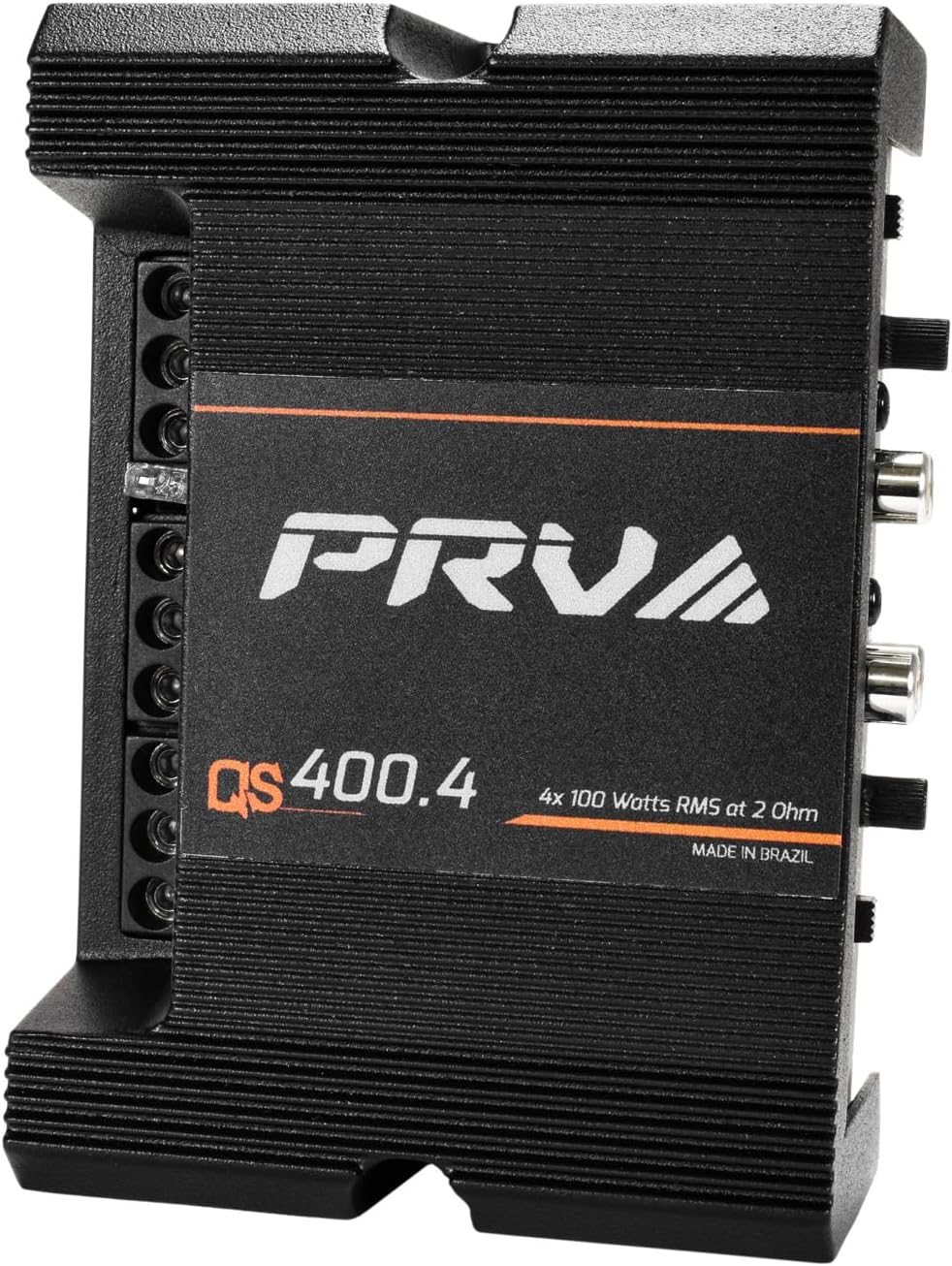

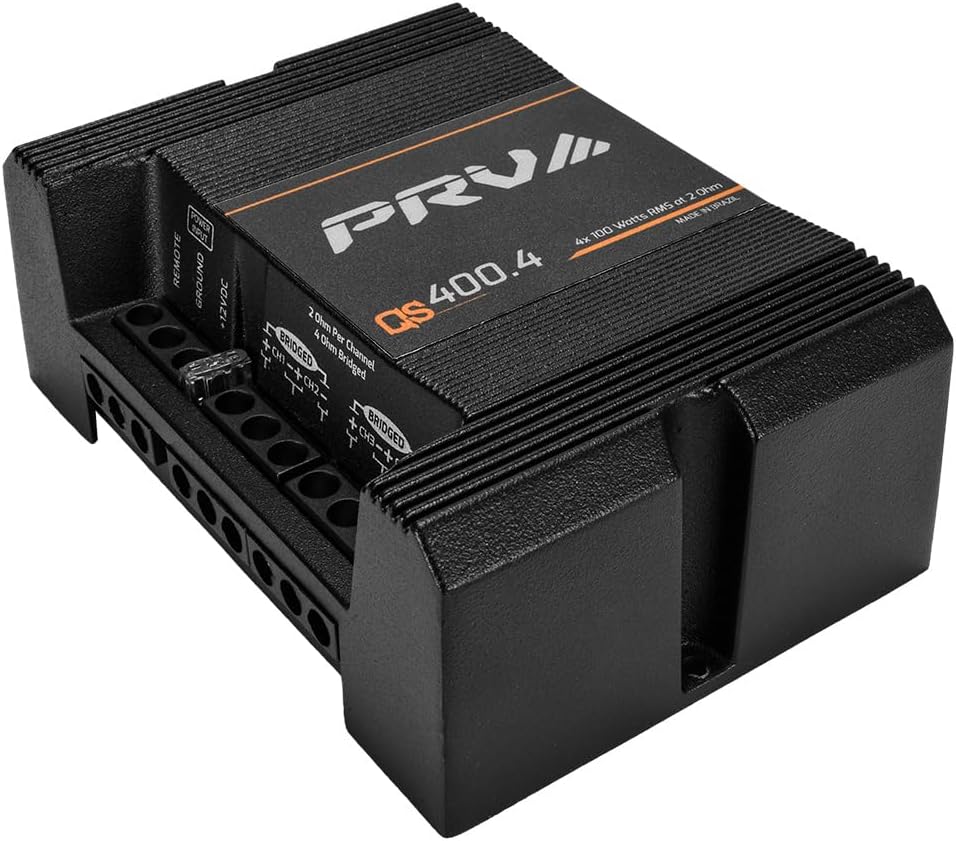

PRV Audio QS400.4 2 Ohm Mini Compact 4 Channel Car Audio Amplifier 4 x 100 Watts

Product description

PRV Audio QS400.4 2 Ohm Mini Compact 4 Channel Car Audio Amplifier 4 x 100 Watts RMS at 2 Ohm

4 x 100 watts TRUE RMS at full range output Digital Class D Brazilian Technology.

4 Channel car audio amplifier stable at 2 Ohm gives you the benefit of wiring multiple speakers and dividing the power per channel.

QS Series 4 Channel amplifiers, also are available on QS800.4 and QS1200.4

QS Series amplifiers are all about efficient design capable of full-range frequency response at a great price!

Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicle’s electrical system!

A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 4″ Wide x 5.40″ Length x 2″ Height

2 Channel Bridged – double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohms per bridged channel at output power of 2 x 200 Watts RMS.

GENERAL SPECIFICATIONS

Impedance 2 Ohm Rated Power at 14.0 V at 2 Ohm 4x 100 Watts RMS Rated Power at 14.0 V at 4 Ohm 4x 70 Watts RMS Channels 4 Channel Average Efficiency 80% Operating Voltage 9 to 15 Volts Musical Current Draw 45 A Minimal Power Wire Input (OFC) 8 Gauge wires Built-in Crossover Fixed HPF & LPF at 90 Hz Minimal Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 25,000 Hz Signal to Noise >90 dB Signal Input 2 Pair RCA Protection System High Temperature / Short circuit on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( WxDxH ) 4.00″ x 5.40″ x 2.00″

Add to Cart

Add to Cart

Price

$77.00$77.00
— no data
$179.91$179.91

Impedance
2 Ohm 2 Ohm 2 Ohm

Channels
4 Channel 4 Channel 4 Channel

Rated RMS Power at 14.0 V at 2 Ohm
4x 100 Watts RMS 4x 220 Watts RMS 4x 310 Watts RMS

Rated RMS Power at 14.0 V at 4 Ohm
4x 70 Watts RMS 4x 140 Watts RMS 4x 160 Watts RMS

Bridged Rated RMS Power at 14.0 V at 4 Ohm
2x 200 Watts RMS 2x 450 Watts RMS 2x 600 Watts RMS

Average Efficiency
80% 82% 84%

Musical Current Draw
45 A 45 A 55 A

Minimal Power Wire Input
(OFC) 8 Gauge wires (OFC) 4 Gauge wires (OFC) 4 Gauge wires

Frequency Response(-3dB)
20 – 25,000 Hz 20 – 25,000 Hz 20 – 24,000 Hz

Dimensions ( Width x Depth x Height )
4.00″ x 5.40″ x 2.00″ 7.90″ x 8.00″ x 2.65″ 7.90″ x 8.42″ x 2.65″

4 x 100 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology
4 Channel car audio amplifier stable at 2 Ohm gives you the benefit of wiring multiple speakers and dividing the power per channel.
Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicle’s electrical system!
A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 4″ Wide x 5.40″ Length x 2″ Height
2 Channel Bridged – double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohms per bridged channel at output power of 2 x 200 Watts RMS.
