RYDEEN CM-DUO3 HD Backup Camera, Stud Mount Lip/ 90° Horizontal, 960 TV Line HD

Product description

Rydeen has been focused on creating products for the mobile electronics industry using the latest science and technology. Rydeen is committed to bringing the latest in safety technology through scientific, industrial processes and product validation. Headquartered in Torrance, California USA, we create unique products focused on driver safety, convenience, and lifestyle enhancement.

Details

The CM-DUO3 HD is a high-quality backup camera with an Ultra HD CMOS II Sensor with NightVisionTM Technology great CVBS resolution with 960 TV lines HD image, effective number of pixels: 574,240, that displays high resolution video and work in night time visibility. The camera can be installed in two different positions, at the lip of license plate or vertical surface (switchable) allowing for multiple vehicle type compatibility. The high-resolution video and wide-angle lens ensure that if anything is behind your vehicle, you will see it before you start backing up.

The camera comes in a black waterproof metal zinc alloy cSTOK CODEg, has a unique advanced 1/3-inch CMOS sensor & 170° viewing angle, works in almost complete dark settings with night vision. The high-quality camera is designed for professional installers with OEM appearance, with a Zing Alloy metal housing and complete waterproof with IP67-IP68 rating for a long-life usage.

Jumper Wire/Loop Design:

CM-DUO3 HD has 2 jumper wires:

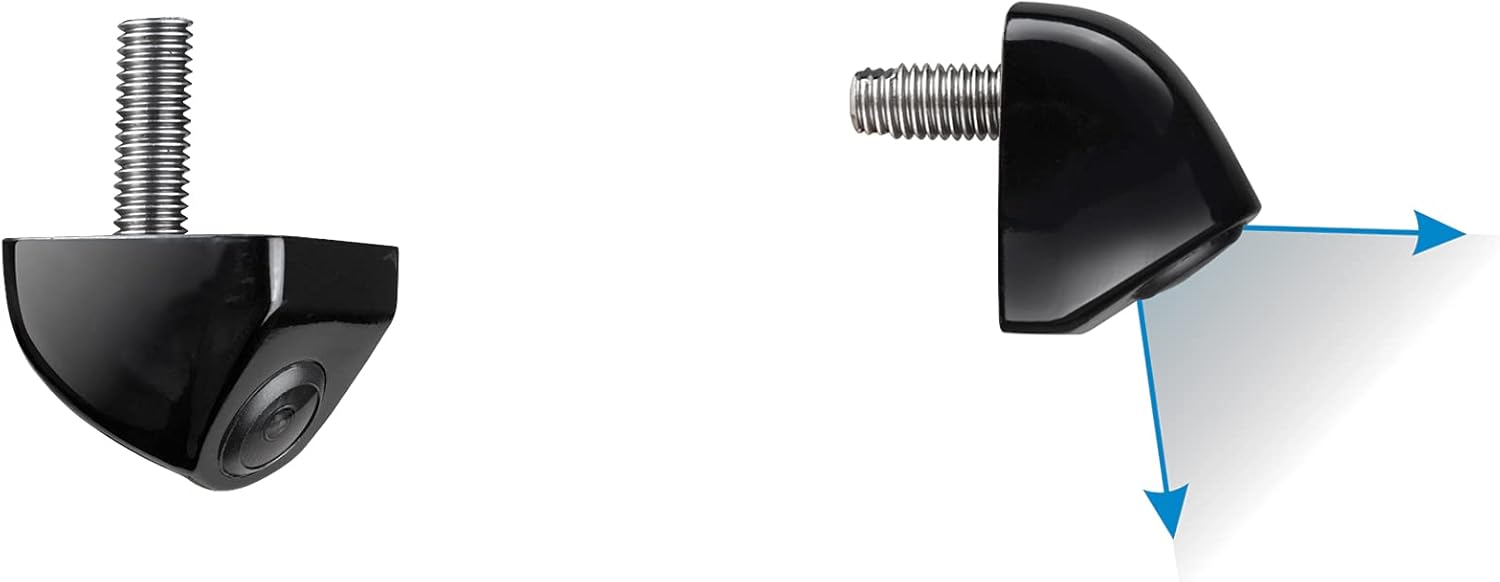

For switching between trunk lip mount (default) and 90-degrees angle installation – White Loop

For switching parking guide line On/Off – Green Loop (Disconnected: Parking line is ON – default, Connected: Parking line is OFF)

Product Features:

MINy camera with CMOS sensor.Mirror/90˚ image selectable.Parking line ON/OFF selectableWider view angle up to 170 degreesSurface mountHigh quality image output (HD)

Precautions:

Remove protective lens covering prior to use.Be cautious when mounting camera and wiring near fuel tank.System is designed for +12 volt DC systems only.

Sensor CMOS Resolution 950*576 TV Line 960 Min Illumination <0.1 Lux Angle 170˚ Voltage & Max Curent 9~16V, 100mA Video System NTSC (color) Image Mirror Image (default) Parking Line Parking ON (default) Body Color Black (B) Water Proof IP67 – IP68 Operation Temp -30˚C +70˚C Storage Temp -40˚C ~ +105˚C

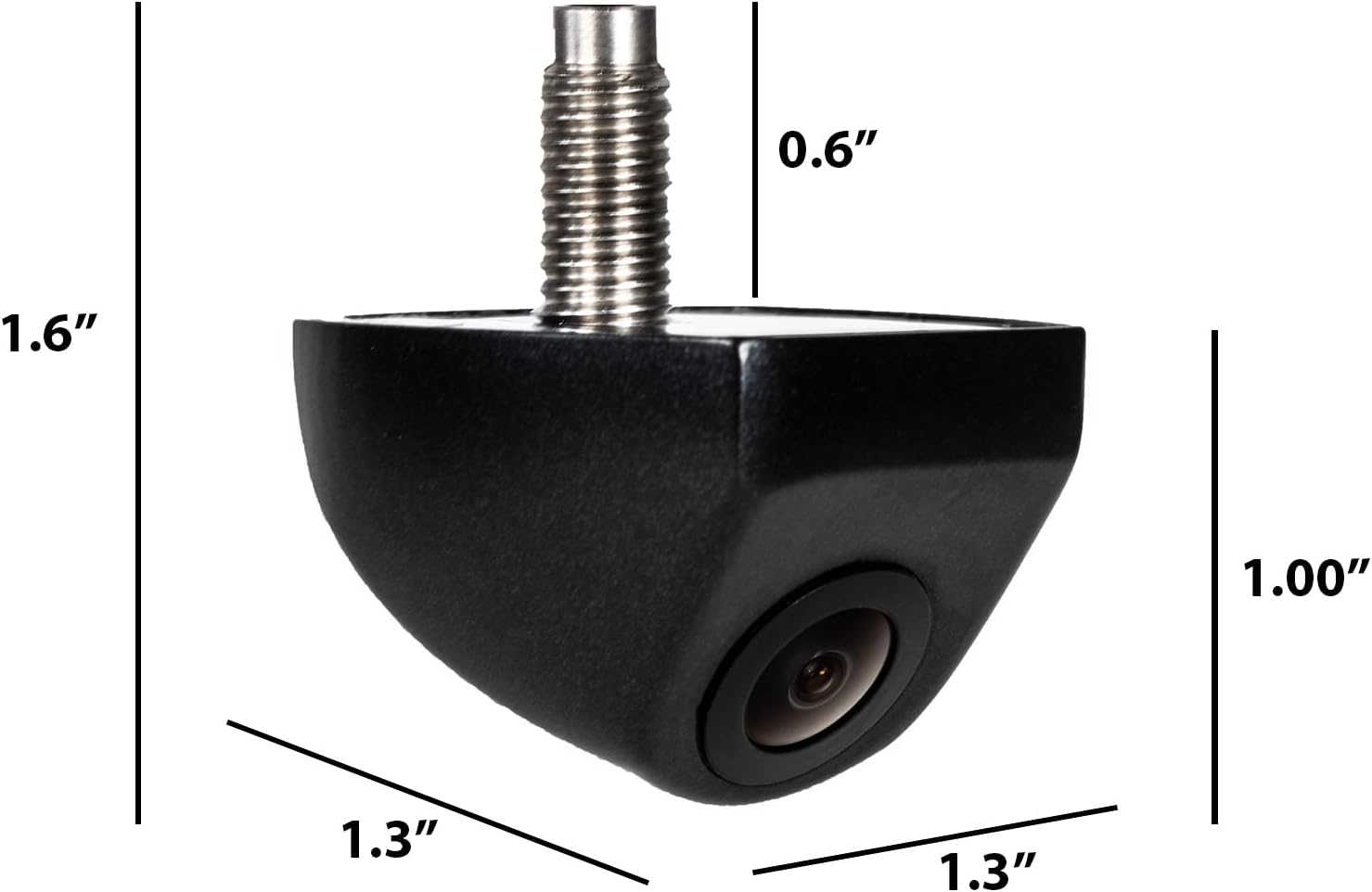

Product Dimensions ‏ : ‎ 7 x 4 x 3 inches; 1 Pounds
Item model number ‏ : ‎ CMDUO3HD
Date First Available ‏ : ‎ October 8, 2019
Manufacturer ‏ : ‎ Rydeen
STOK CODE ‏ : ‎ B07YVLVWN5
Customer Reviews: 5.0 5.0 out of 5 stars (1) var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });

Rydeen CM-DUO3HD Dual Mount CMOS HD Sensor Reverse Back-Up Camera
Zinc Alloy Metal Housing
Sensor: 1/3 CMOS
Resolution: 960(H) x 480(V)
