RYDEEN CM-HD4 Backup/Front View Camera, Waterproof, NightVision 960 TV LINE HD

Product description

Rydeen has been focused on creating products for the mobile electronics industry using the latest science and technology. Rydeen is committed to bringing the latest in safety technology through scientific, industrial processes and product validation. Headquartered in Torrance, California USA, we create unique products focused on driver safety, convenience, and lifestyle enhancement.

Details

The CM-HD4 is a CVBS analog backup camera and is versatile in that it can be used for as a front camera or a rear camera on your vehicle. The key design is based on their reduced size making them very easy to install without huge visual impact to your vehicle. The CM-HD4 has an advanced 1/3-inch CMOS sensor & 170° viewing angle, works in dark settings with highly sensitive Ultra HD CMOS II Sensor with NightVisionTM Technology makes its performance so much better, with giving you increased visibility with double the resolution compares to standard backup cameras. The high-resolution video and wide-angle lens with 5 layers construction ensure that if anything is behind your vehicle, you will see it before you start backing up.

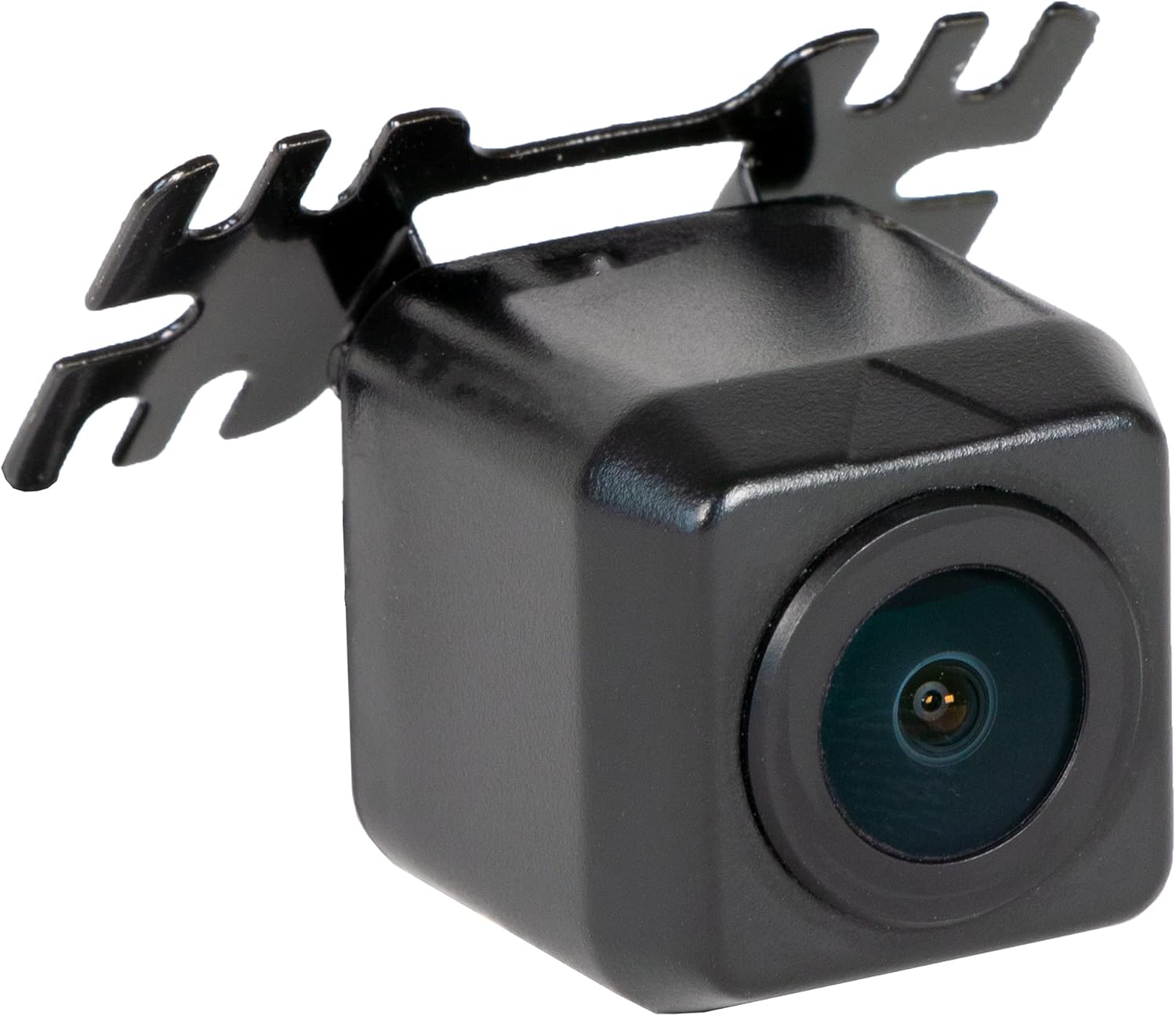

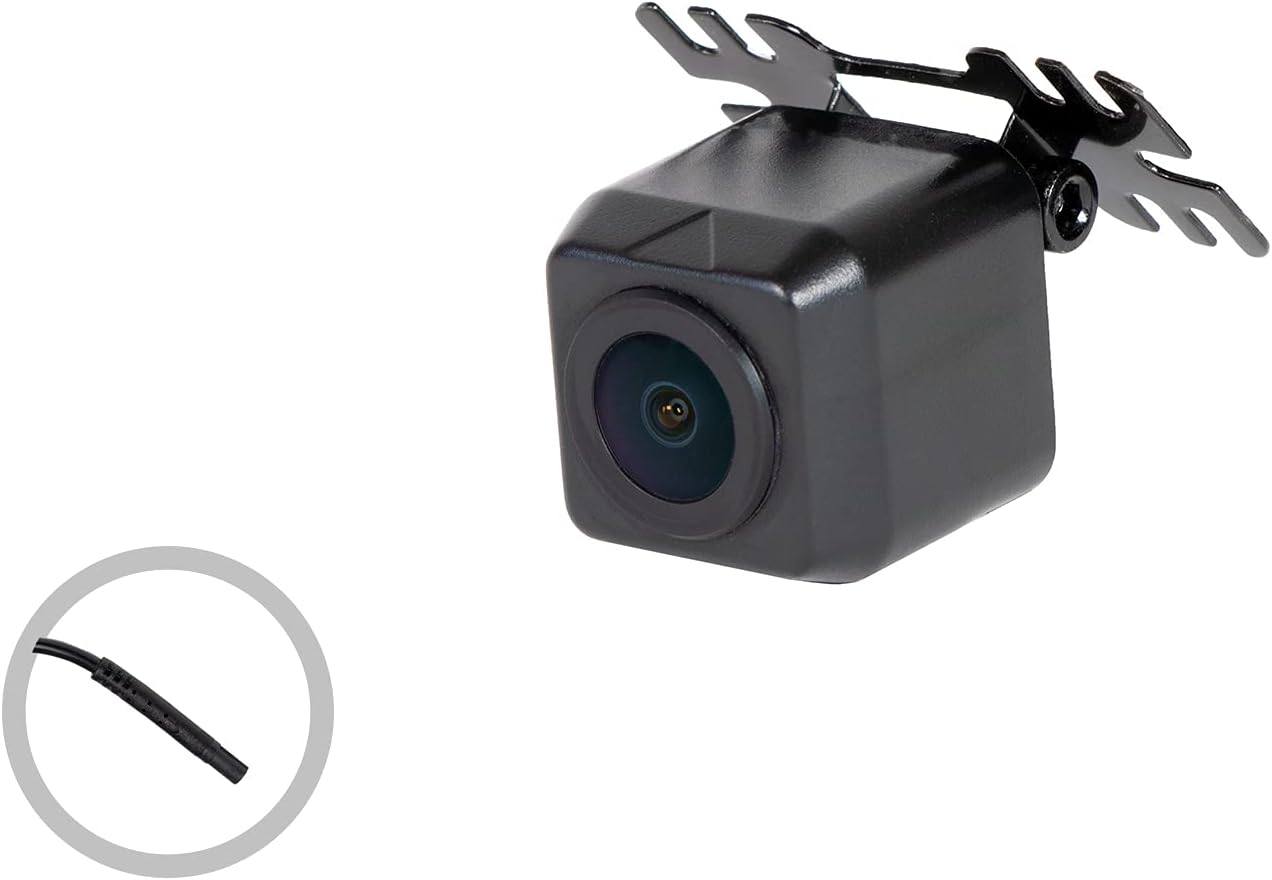

The camera comes in a black engineered ABS housing with ultrasonic sealing technology (no glue used) ensuring long life usage in outside environment. Installation for recessed area above a license plate or front lip.

Jumper Wire/Loop Design:

CM-HD4 has 2 jumper wires:

For switching between trunk lip mount (default, mirror image) and front installation – White Loop

For switching parking guide line On/Off – Green Loop Disconnected: Parking line is ON–default, Connected: Parking line is OFF)

Product Features:

Miny camera with CMOS sensorMirror/ standard image selectableParking line ON/OFF selectableWider view angle up to 170 ˚Waterproof IP67 – IP68 approvedHigh Quality image output (HD)

Precautions:

Remove protective lens covering prior to use.Be cautious when mounting the camera and wiring near the fuel tank.System is designed for +12 volt DC systems only.

Sensor CMOS Resolution 950*576 TV Line 960 Min Illumination 0.1 Lux ~ 0.001 Lux Angle 170˚ Voltage & Max Current 9~16, 100mA Video System NTSC (color) Image Mirror image (default) Parking Line Parking ON (default) Body Color Black (B) Water Proof IP67 – IP68 Operation Temp -30˚C ~ +70˚C Storage Temp -40˚C ~ +105˚C

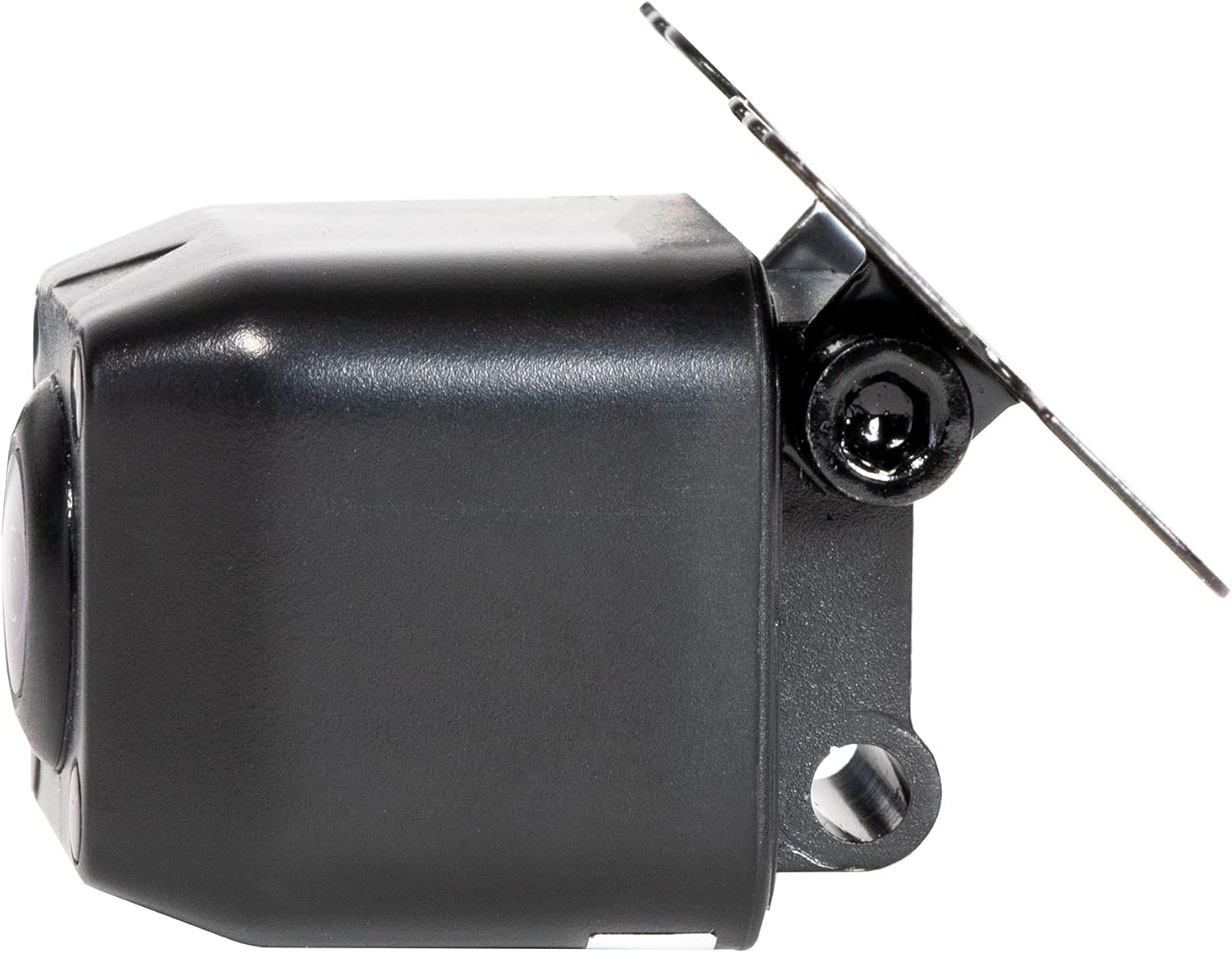

The CM-HD4 is one of the best cameras on the market, and is versatile in that it can be used as a front camera or a rear camera on your vehicle. The camera can be mounted with double sided adhesive tape, or with short sheet metal screws for a more permanent position. Once the CM-HD4 is mounted it can be adjusted up to 90° for optimal viewing. This camera will connect to any display with a standard RCA plug (not compatible with factory radio without integration harness which sold separately).
MINy Camera with Ultra HD CMOS II Sensor with NightVision Technology, Engineered ABS Housing, Best in the Market Resolution (TV Lines): 960, Minimum Illumination: 0.1 Lux, Viewing Angle: 170 Degree , Operating Voltage: 9-16V, Water-Proof: IP67 / IP68, Video System: NTSC (Color), Image: Mirror / Standard Selectable, Selactable Parking Line Display, Body Color: Black, Quick Disconnect Wire Harness, 1 Year Warranty

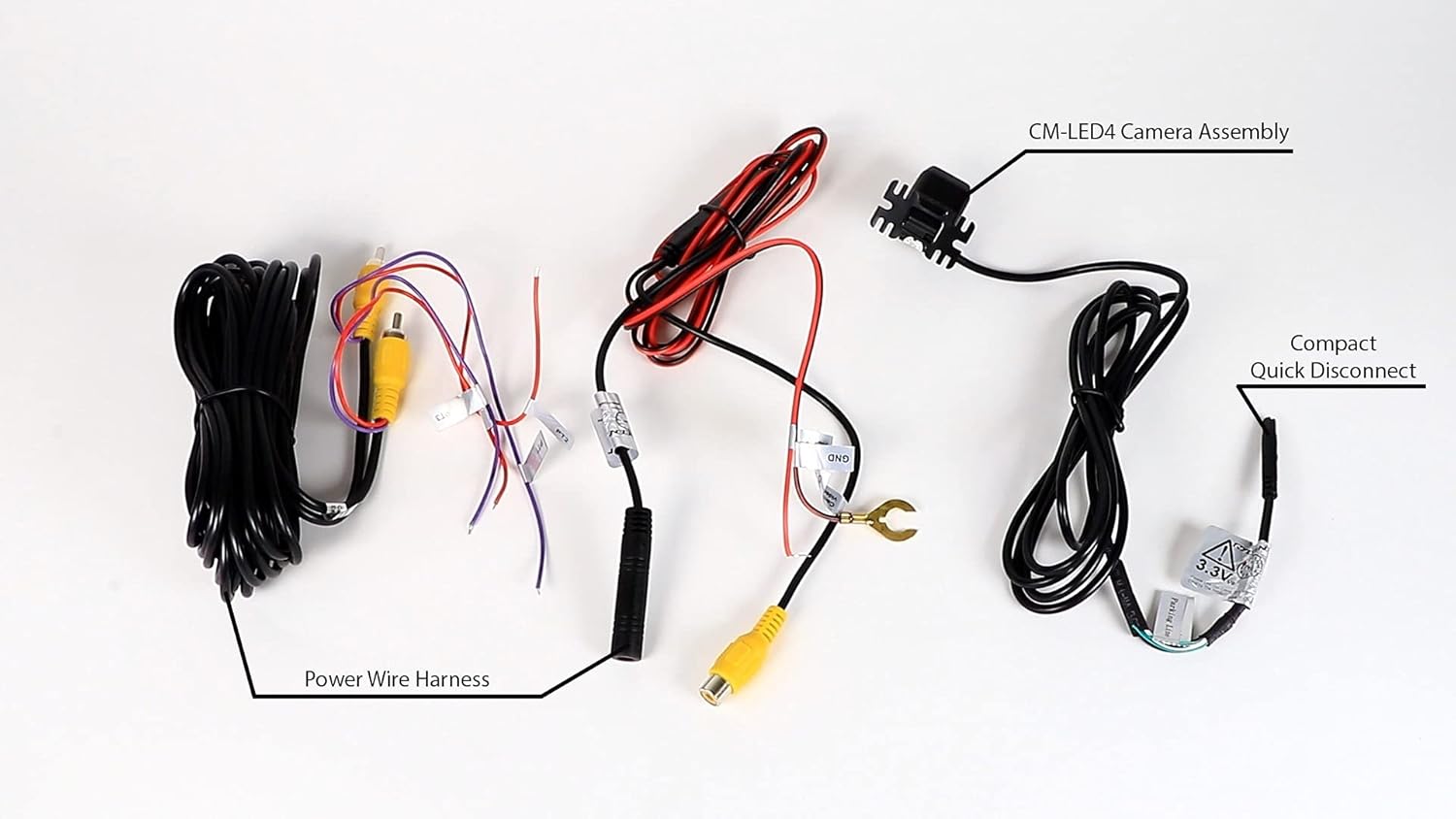

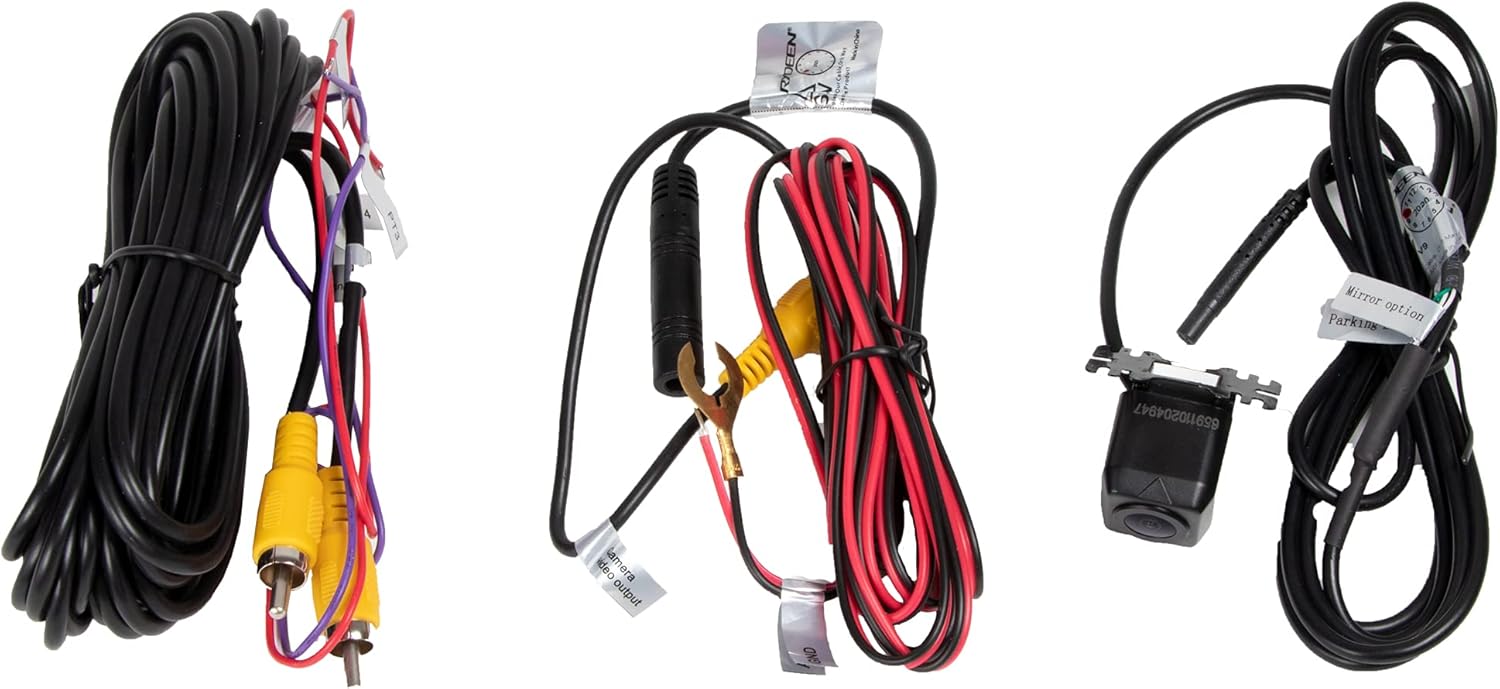

In the Box: Rydeen Camera Power Wire Harness Owner’s Manual Warranty Card .
