S.M.S.L RAW MDA1 Dual ES9039Q2M Decoder Support MQA MQA-CD LDAC Hi-res DAC

Product description

Qualcomm Bluetooth chip

Supports LDAC24bit/96kHz, APTX/HD, SBC and AAC

XMOSXU-316

USB adapts XMOS XU-316, for a real 32-bit

Support DoP and native DSD

PCM supports up to 768kHz and DSD supports up to DSD512.

USB1.1 and USB2.0 Two-mode options

Allow to switch two different USB modes in the menu

Using USB2.0 supports 768kHz/32bit with driver installation required

Using USBl.1 supports 96kH without the driver

To output various audio directly

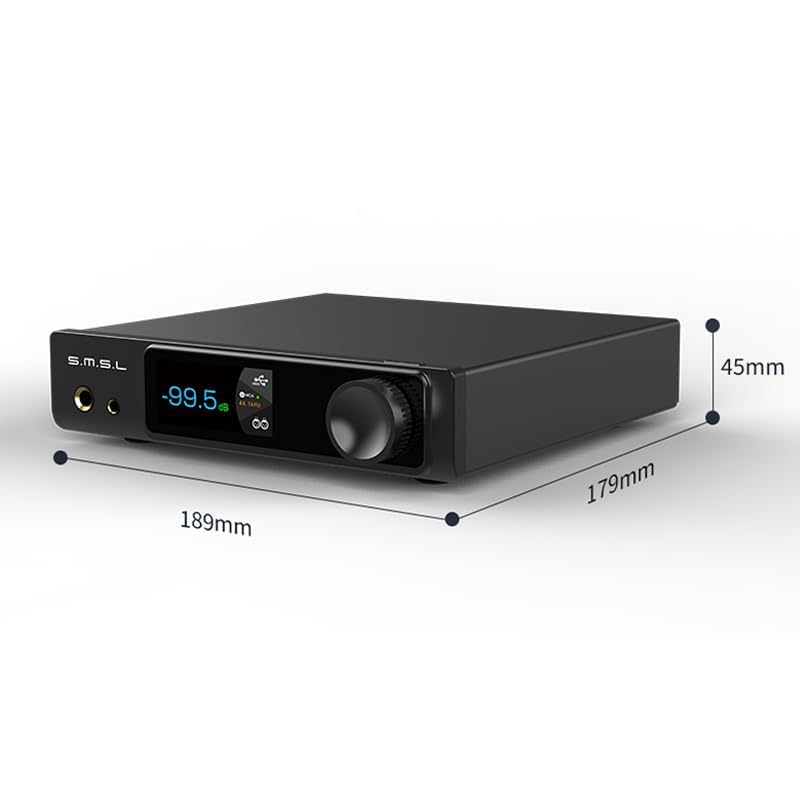

Product size

189x45x179mm(WxHxD)

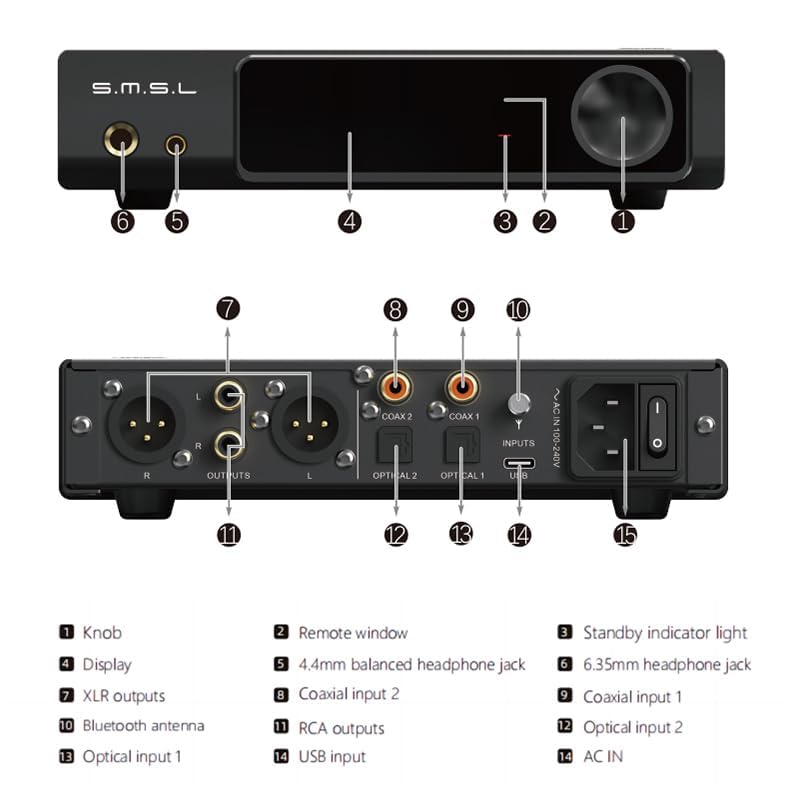

Interface information

1、Knob 2、Remote window

3、Standby indicator light 4、Display

5、4.4mm balanced headphone jack 6、6.35mm headphone jack

7、XLR outputs 8、Coaxial input 2

9、Coaxial input 1 10、Bluetooth antenna

11、RCA outputs 12、Optical input 2

13、Optical input 1 14、USB input

15、AC IN

Specifications

Input USB/Optical x2/Coaxialx2/Bluetooth Output RCA/XLR/HEADPHONE THD+N 0.00005%(-124.5dB non-Weighting) Line output amplitude XLR—5.2Vrms、RCA—2.5Vrms、HP—8.2Vrms Headphone output power 16Ω—2.5Wx2、32Ω—1.7Wx2 Output lmpedance LINE OUT—100Ω、HP OUT—Near 0Ω Dynamic range XLR—132dB、RCA—127dB、HP—122dB SNR XLR—132dB、RCA—127dB、HP—122dB USB transmission Asynchronization USB compatibility Windows7/8/8.1/10/11(Needs Driver)、Mac OSX10.6 or Later、 Linux(Driverless) MQA decoder USB/0ptical/Coaxial Sampling rate & Bit Depth USB：PCM 44.1~768kHz(32bit)、DSD 2.8224~22.5792MHz(1bit)、DoP DoP256 Sampling rate & Bit Depth Optical /Coaxial：44.1~192kHz(24bit)、DoP DoP64 Bluetooth specification 5.1(Support SBC,aptX,aptX HD,LDAC) Power Consumption <30W Standby power ＜0.5W

Product Dimensions ‏ : ‎ 7.05 x 7.05 x 0.1 inches; 3.33 Pounds
Item model number ‏ : ‎ RAW MDA1 SMSL
Date First Available ‏ : ‎ August 27, 2024
Manufacturer ‏ : ‎ SMSL
STOK CODE ‏ : ‎ B0DFCFHQ2W
Best Sellers Rank: #184,578 in Electronics (See Top 100 in Electronics) #290 in Digital-Analog Converters #335 in Signal Converters
Customer Reviews: 3.7 3.7 out of 5 stars (34) var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
support MQA &MQA-CD
The latest high-end dual ESS decoding chipES9039Q2M
Qualcomm Bluetooth chip: Supports LDAC24bit/96kHz, APTX/HD, SBC and AAC.
XMOSXU-316： USB adapts XMOS XU-316, for a real 32bit， Support DoP and native DSD， PCM supports up to 768kHz and DSD supports up to DSD512.
USB1.1 and USB2.0，Two-mode options： Allow to switch two different USB modes in the menu. Using USB2.0 supports 768kHz/32bit with driver installation required. Using USB1.1 supports 96kH without the driver. USB1.1 and USB2.0，Two-mode options： Allow to switch two different USB modes in the menu. Using USB2.0 supports 768kHz/32bit with driver installation required. Using USB1.1 supports 96kH without the driver.
