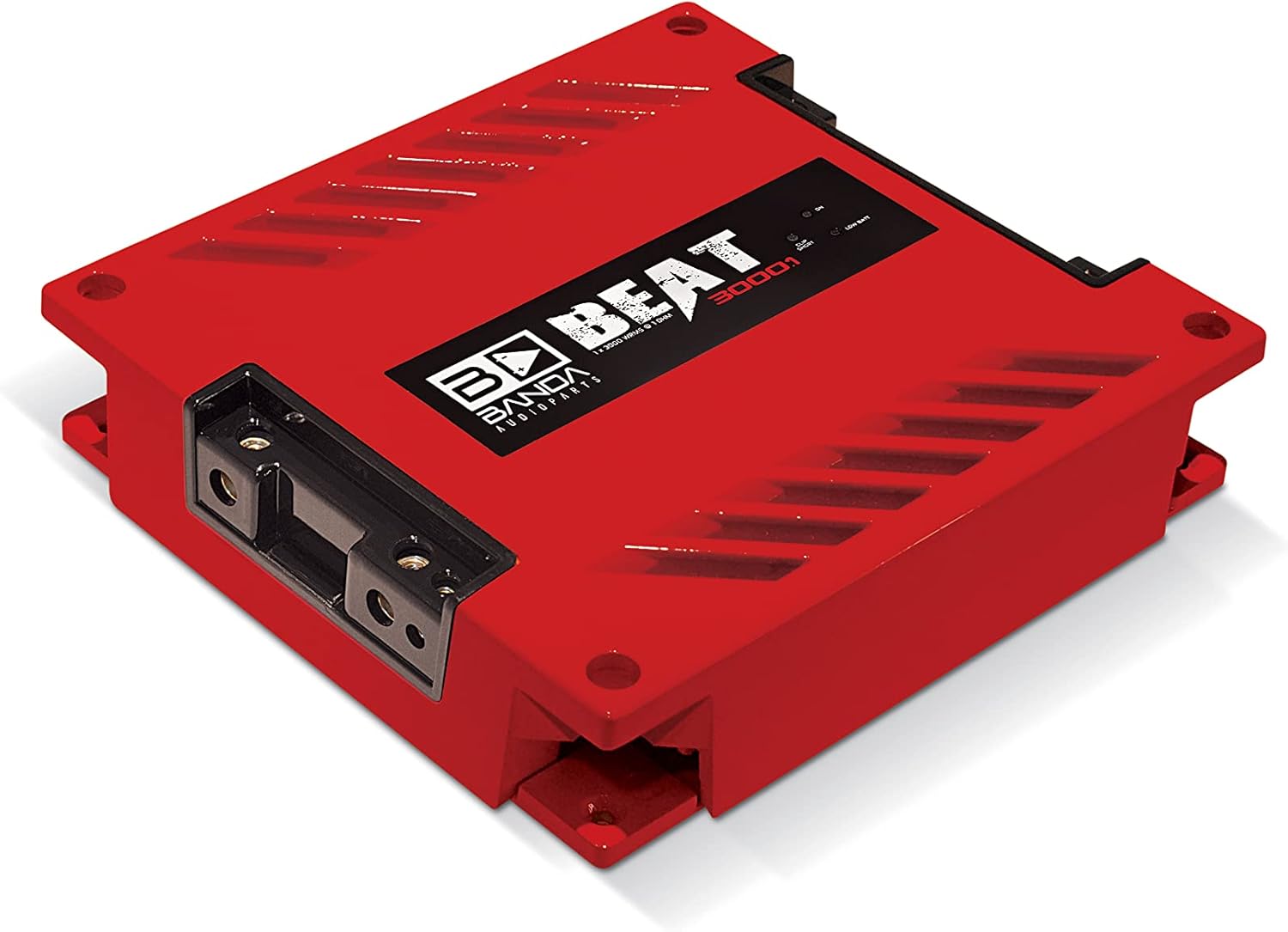

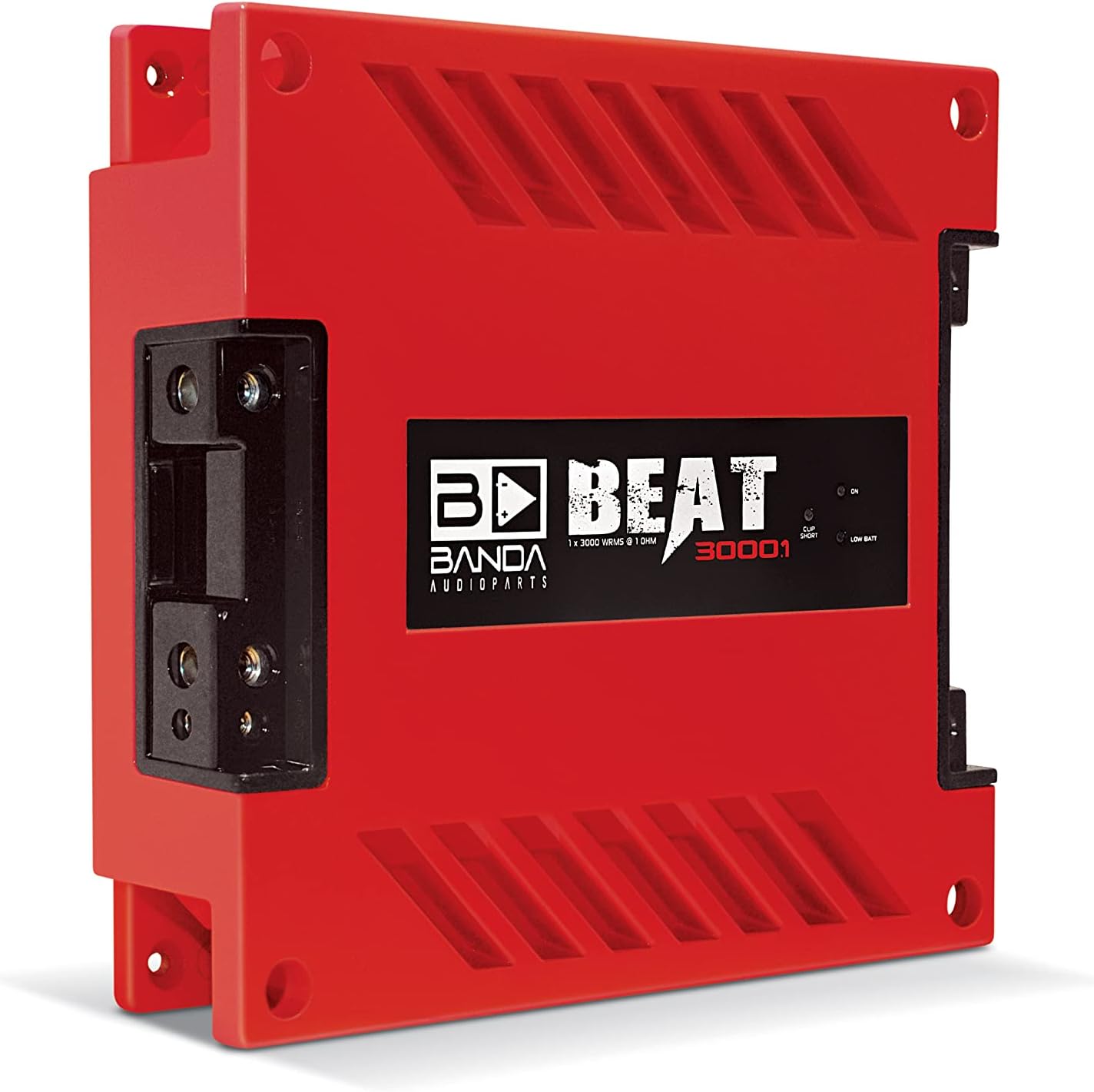

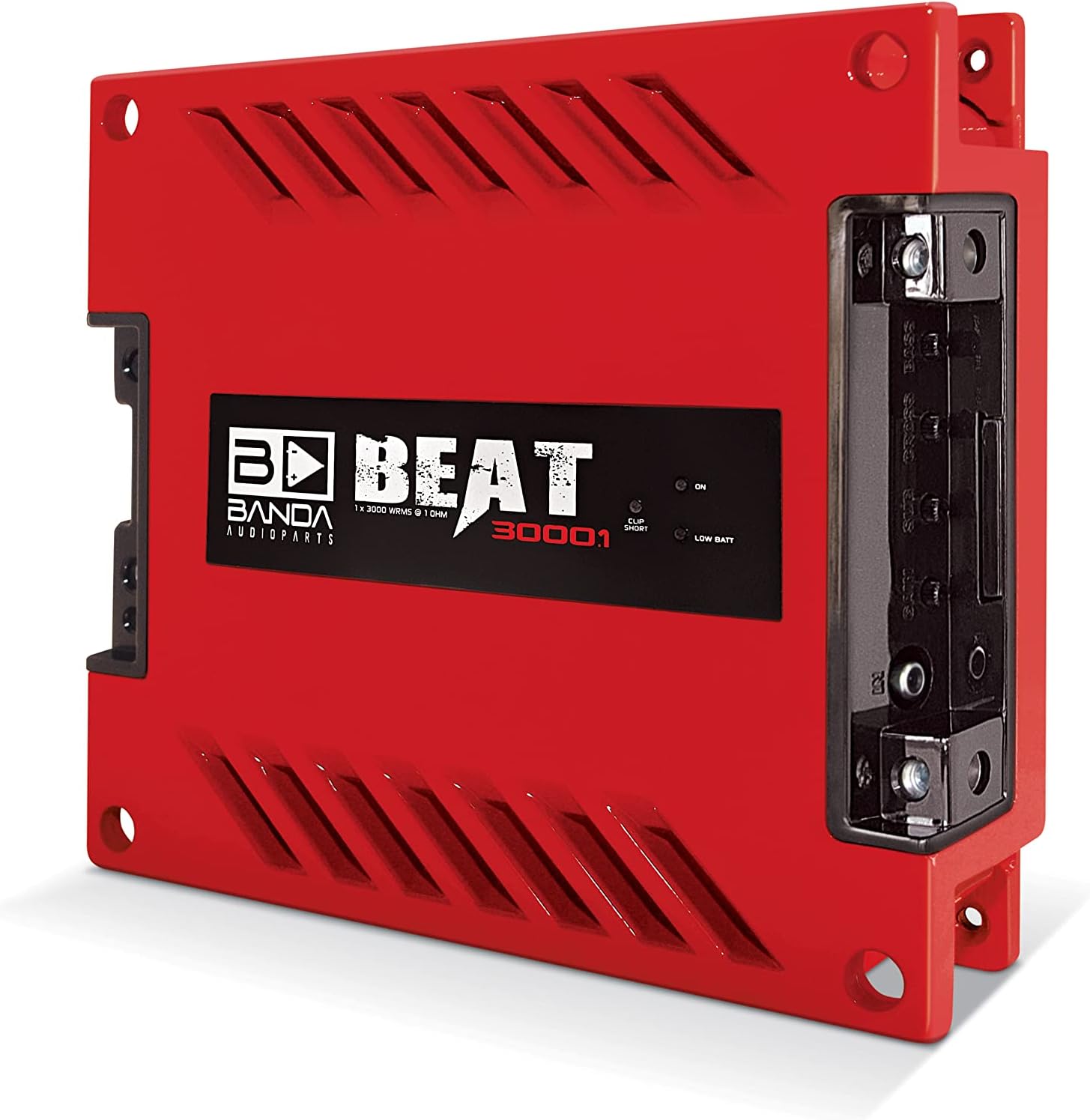

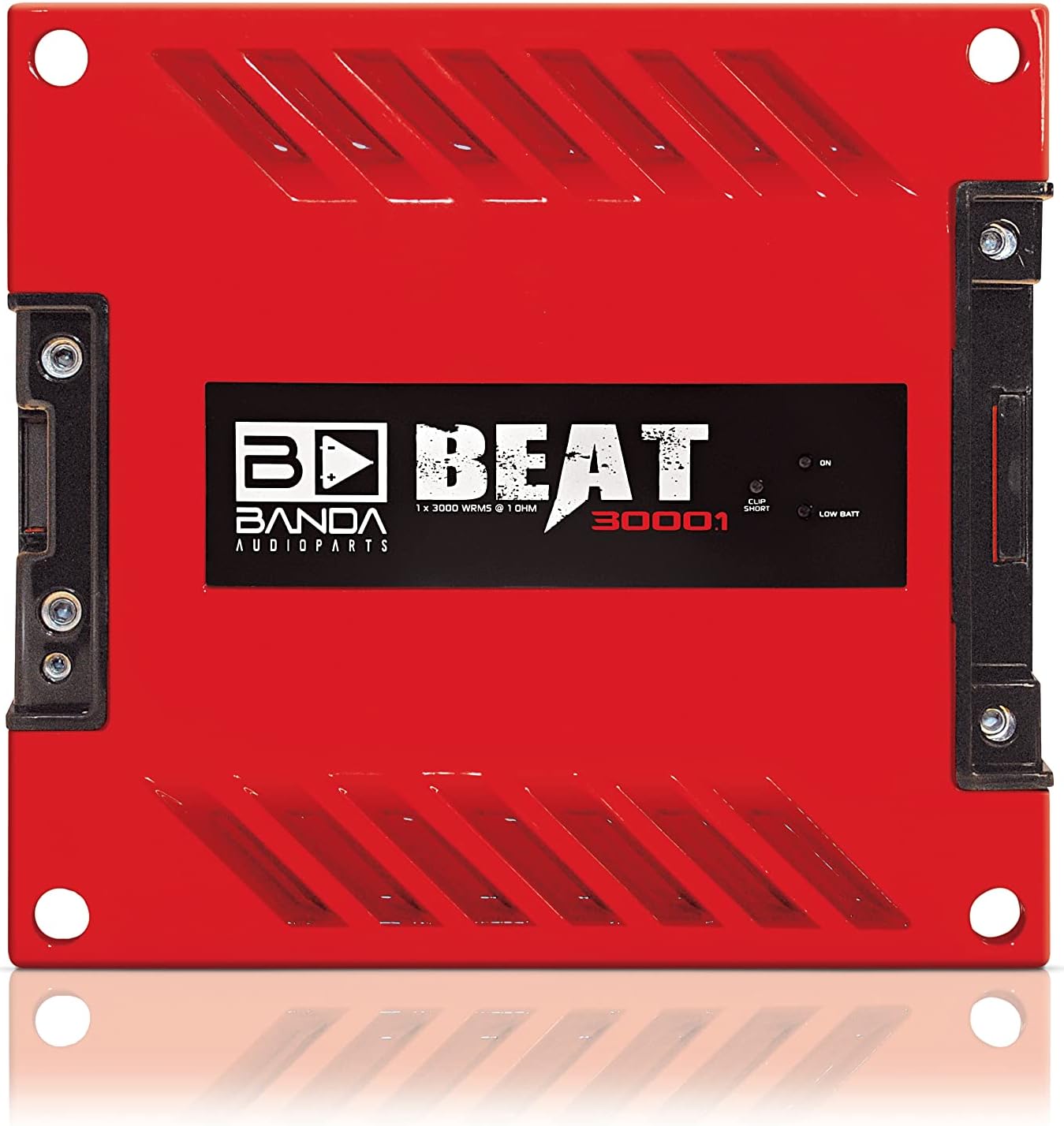

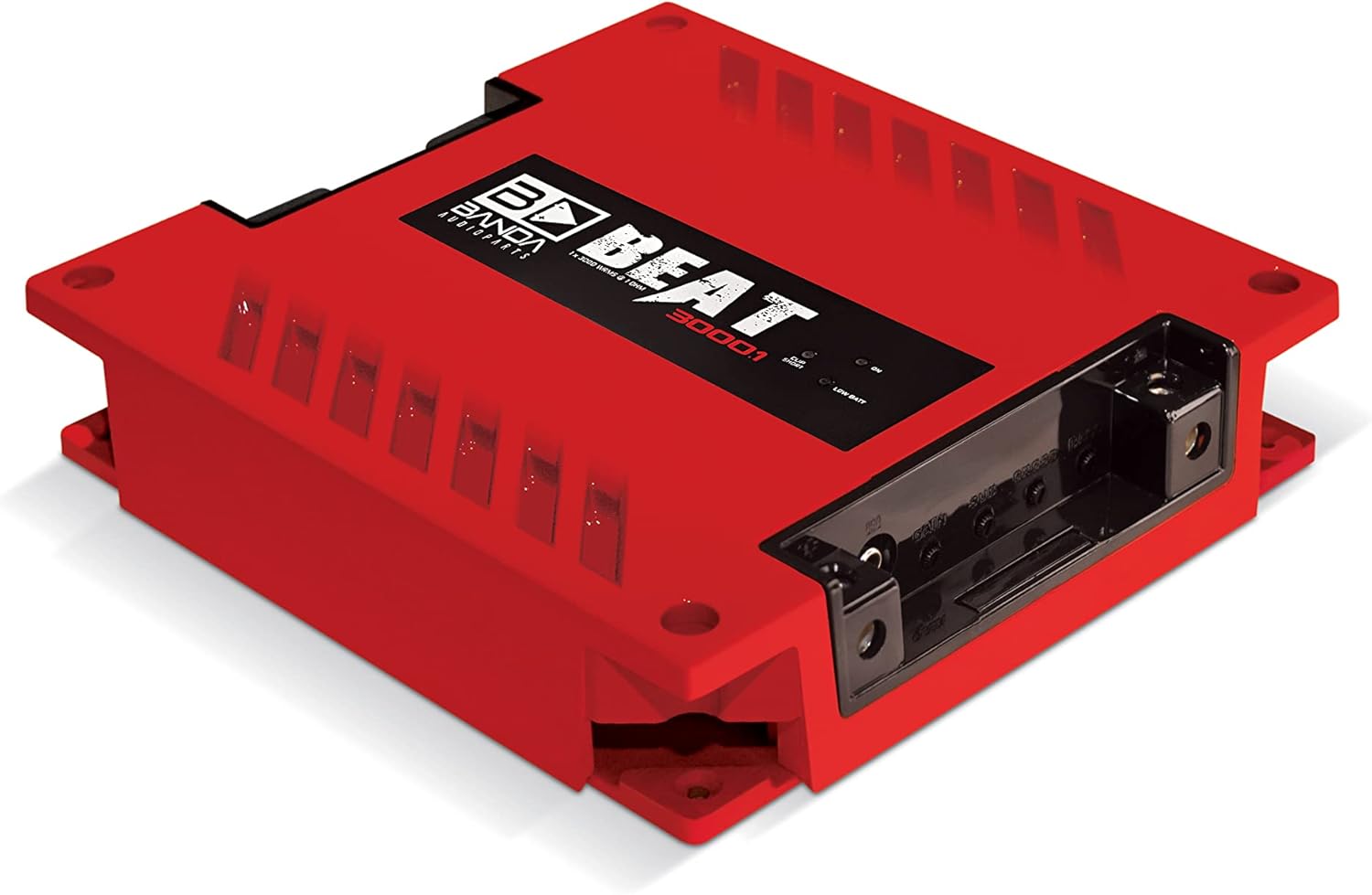

1-Ch. Vehicle Audio Bass Amplifier – 3000Watts High-Powered Mono Bass Amplifier

The BEAT Line is a new compact line of BAND amplifiers. Combine quality features with Class D efficiency. With 1 channel of 3000 Wrms at 1 Ohm, or BEAT3000.1RED, with burnable power reduction. BANDA AUDIOPARTS created BEAT for small and medium sound projects. It has high efficiency, audio quality with minimal distortion (below 1%), low current consumption in the musical signal and compact design that fits in any space of your project.
POWER SUPPLY: Class D vehicle audio amplifier, Total Power 14.4 @ 1 Ohm: 3900 WRMS, Total Power 14.4 @ 2 Ohms: 2900 WRMS, Total Power 12.6 @ 1 Ohm: 3000 WRMS, Total Power 12.6 @ 2 Ohms: 2300 WRMS, Efficiency @ 2 Ohms: 78%, Efficiency @ 1 Ohm: 71%
MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), shorting and thermal protection indicator, Yellow LED: below specified voltage indicator (flashing)
POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD + Noise: less than 1%, Input Sensitivity: 110mV to 4V, Signal to Noise Ratio: 80dB
SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
OTHER TECHNICAL SPECS: Recommended Fuse: 150A, Current at Rest: 1.5A, Ave. Current Draw (Sinusoidal): 360 A, Ave. Current Draw (Music): 180 A, Power Wire Gauge: 21mm/4 AWG, Speaker Wire Gauge: 2 x 4mm/2 x 11 AWG, Size: 9.7” x 8.4” x 2.2” -inches
