SMSL DS200 Headphone Amp DAC Bluetooth 5.1 Dual CS43131 Chip DAC Amp 3.5mm/4.4mm

Product description

With the DS200, SMSL presents a compact DAC and headphone amplifier with a retro-futuristic aesthetic.It’s equipped with a Cirrus Logic 2x CS43131 DAC chip combined with a 3rd-generation XMOS XU-316 chip, enabling it to support sampling rates up to PCM up to 32bit 768kHz and DSD up to DSD256

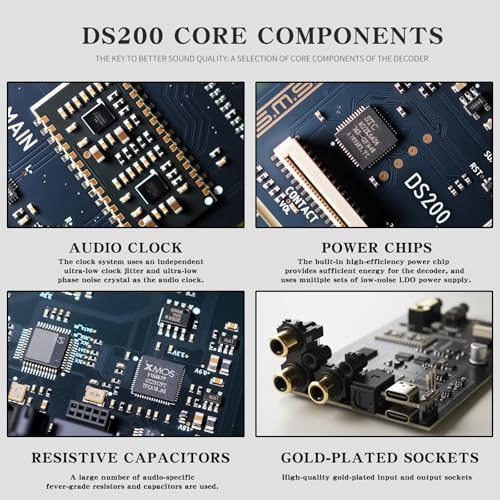

Rich Interior Design

Three Major Chip Combinations

SMSL DS200 is equipped with dual flagship CS4131 DAC and third-generation XMOS XU-316 USB audio processor to build an unparalleled audio processing core. Dual CS4131 provides extremely pure dual-channel decoding and ultra-low distortion output, ensuring that every note is full and delicate.

Multiple Inputs

Its coaxial, USB, and optical inputs and Bluetooth 5.1 connectivity make it a flexible device, capable of integrating into a wide range of configurations.

Adjust the volume and still keep the delicate sound

SMSL DS200 has built-in intelligent high and low gain: independently optimize the amplification path to ensure the signal is pure and lossless, and the sound quality is always stable and excellent, regardless of the volume or gain. Free adjustment, just for your ears.

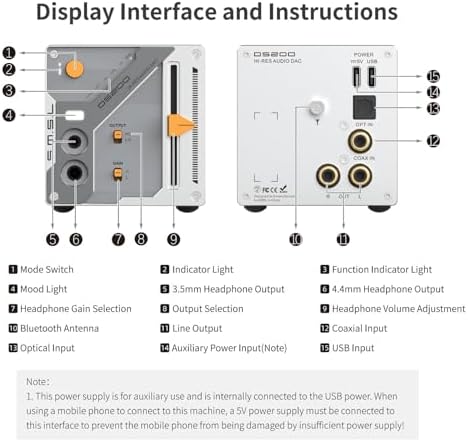

Product parameters/port introduction/packaging contents

【Dual-chip CS43131・Extreme Distortion Control】The SMSL DS200 headphone DAC amp combo uses Cirrus Logic’s latest audio decoding chip CS43131, and with the carefully designed circuit, its performance reaches an unprecedented 0.00019% (-114dB) distortion. What you hear is no longer “processed sound”, but “original sound holographic projection” captured by the studio microphone.
【New Third-Generation XMOS XU-316】USB DAC uses the new third-generation XMOS XU-316, equipped with the new third-generation XMOS XU-316 USB audio processing chip, redefines digital audio with a 16-core parallel computing architecture, PCM supports up to 32bit/768kHz, DSD supports up to DSD256; it has both the warm musicality of vinyl and the precise positioning of digital audio.
【Studio-Grade MQA MQA-CD and HD Playback】MQA/MQA-CD DAC USB supports MOA decoding and MOA-CD, opening the “space-time door of the original studio sound” for you, sharing the sound memory of the same space-time with musicians and recording engineers. The meaning of Hi-Fi is truly realized.
【Bluetooth 5.1】 Bluetooth 5.1 connects quickly, and can connect your device without contact and over long distances. High-resolution audio is losslessly transmitted, the treble is clear and not harsh, the bass is thick and not chaotic, and each note is accurately restored, so that the music remains original over long distances. Enjoy pure sound quality.

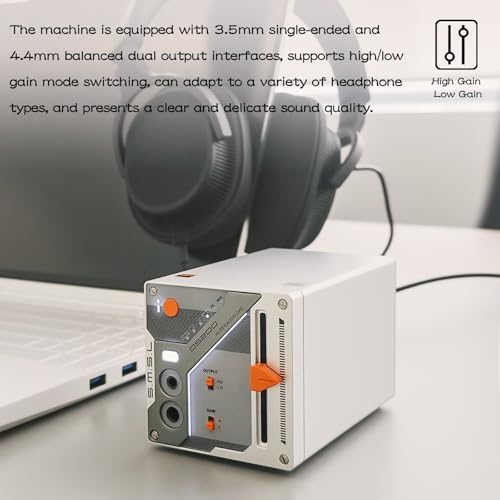

【Equipped with Headphone Output to Support High and Low Gain】DS200 Stereo DAC headphone amplifier is equipped with 3.5mm and 4.4mm balanced headphone output interfaces. At the same time, it supports high and low gain adjustment. When facing high-impedance professional headphones or low-sensitivity earplugs, it can accurately output the adapted power, and the sound details are clearly visible. It is easy to control all kinds of headphones, allowing you to immerse yourself in the world of music.​
