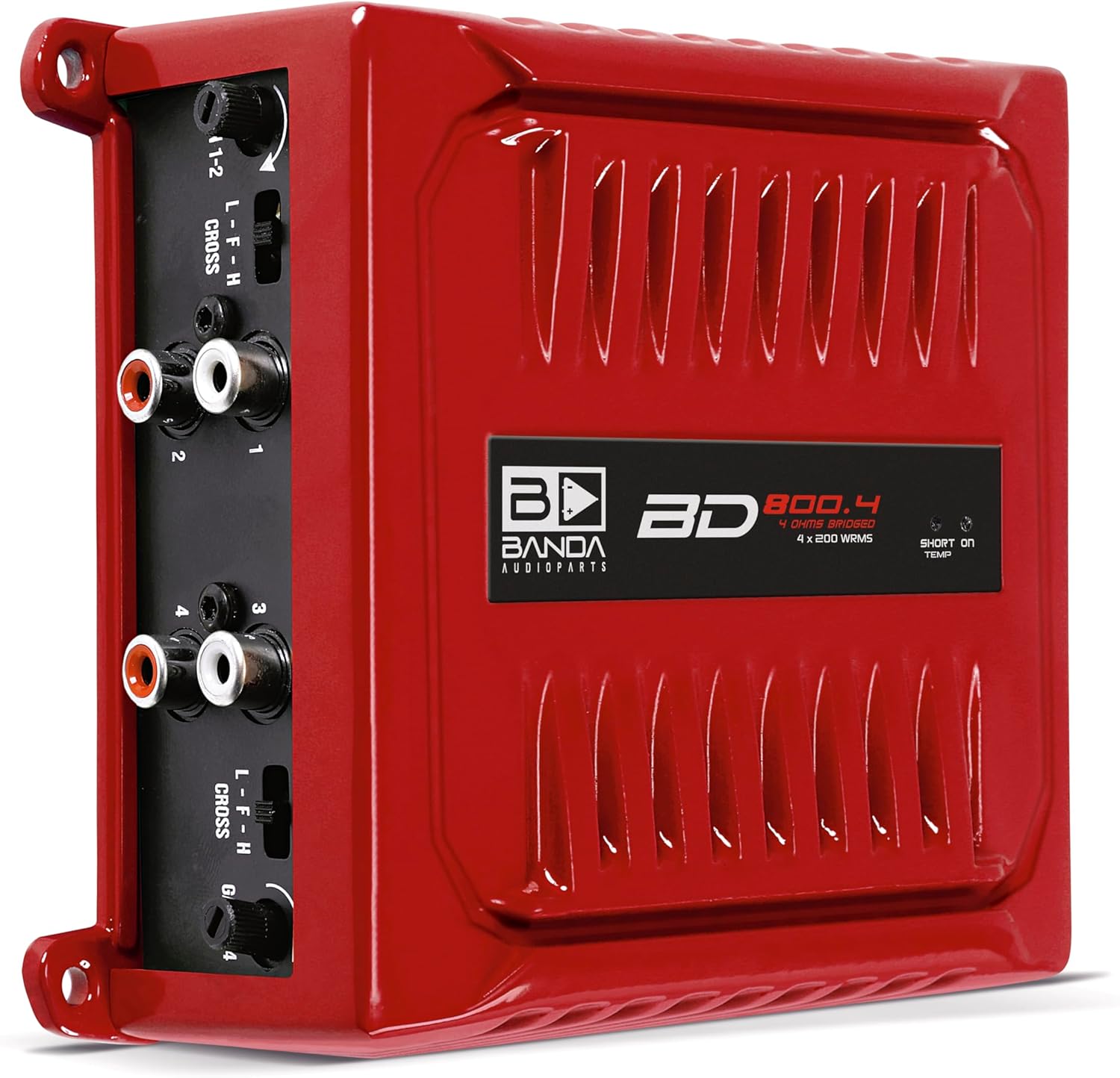

Banda Audioparts BD800.42OHMRED 800 Watts 4 Channel 2 Ohm Full Range Car Audio

“Banda Audioparts BD800.42OHMRED 800 Watts 4 Channel 2 Ohm Full Range Car Audio Amplfier 4 x 200 Watt Rms 4 Ohms Bridged – Red || SPECIFICATIONS Model # BD800.42OHMRED Color : Red 800.4 : 4 x 100 WRMS | Total Power 14,4 @ 2 Ohms : 4 x 260 WRMS | Total Power 14,4 @ 4 Ohms : 2 x 520 WRMS | Total Power 12,6 @ 2 Ohms : 4 x 200 WRMS | Total Power 12,6 @ 4 Ohms : 2 x 400 WRMS | Efficiency @ 4 Ohms : 0.84 | Efficiency @ 2 Ohms : 0.78 | || SPECIFICATIONS Input Voltage : 9 – 15V | Input Impedance : 22K Ohms | THD+Noise : <1% | Input Sensitivity : 150mV – 2,1V | SNR : 83dB | Frequency Response : 30 to 30kHz (-3dBs) | HPF (High Pass Filter) : 30 to 80Hz @ 12dB/octave Linkwitz-Riley | LPF (Low Pass Filter) : 80 to 30kHz @ 12dB/octave Linkwitz-Riley | Recommended Fuse : 50 A | Current at Rest : 1 A | Average Current Draw (Sinusoidal) : 90 A | || SPECIFICATIONS AVERAGE CURRENT DRAW (MUSIC) Power Wire Gauge (min. Recommended) : 16mm / 5 AWG | Speaker Wire Gauge (min. Recommended) : 2 x 2,5mm / 2 x 14 AWG | Weight (Lb) : 6,9 | Height (in) : 2,2 | Width (in) : 8,4 | Depth (in) : 9,7 | || A history of 27 years of entrepreneurship, innovation and passion. These are the three pillars that encourage and guide the Banda Audioparts throughout his career. | Starting its activities in 1986 focused on the assembly of electronic components for many different purposes, the company soon evolved its portfolio of services becoming maker and developer of technologies for automotive sound systems. | 8 times winner of the award marks Brazil – class automotive amplifiers || 6 Countries with projects around the world, we continue to expand | 27 Years of Experience with a lot of history to tell, the Banda presents innovative & powerful products | 100% National The entire manufacturing process of the Banda is Brazilian, which ensures flexibility & innovation | 30000 WRMS Revolutionized the Brazilian amplifier market w/ products never before seen | For this passion we have for what we perform, develop & produce, many in the market tell us that “Banda is Banda”."
“SPECIFICATIONS Model # BD800.42OHMRED Color : Red 800.4 : 4 x 100 WRMS | Total Power 14,4 @ 2 Ohms : 4 x 260 WRMS | Total Power 14,4 @ 4 Ohms : 2 x 520 WRMS | Total Power 12,6 @ 2 Ohms : 4 x 200 WRMS | Total Power 12,6 @ 4 Ohms : 2 x 400 WRMS | Efficiency @ 4 Ohms : 0.84 | Efficiency @ 2 Ohms : 0.78 | “
“SPECIFICATIONS Input Voltage : 9 – 15V | Input Impedance : 22K Ohms | THD+Noise : <1% | Input Sensitivity : 150mV – 2,1V | SNR : 83dB | Frequency Response : 30 to 30kHz (-3dBs) | HPF (High Pass Filter) : 30 to 80Hz @ 12dB/octave Linkwitz-Riley | LPF (Low Pass Filter) : 80 to 30kHz @ 12dB/octave Linkwitz-Riley | Recommended Fuse : 50 A | Current at Rest : 1 A | Average Current Draw (Sinusoidal) : 90 A | "
“SPECIFICATIONS AVERAGE CURRENT DRAW (MUSIC) Power Wire Gauge (min. Recommended) : 16mm / 5 AWG | Speaker Wire Gauge (min. Recommended) : 2 x 2,5mm / 2 x 14 AWG | Weight (Lb) : 6,9 | Height (in) : 2,2 | Width (in) : 8,4 | Depth (in) : 9,7 | “
A history of 27 years of entrepreneurship, innovation and passion. These are the three pillars that encourage and guide the Banda Audioparts throughout his career. | Starting its activities in 1986 focused on the assembly of electronic components for many different purposes, the company soon evolved its portfolio of services becoming maker and developer of technologies for automotive sound systems. | 8 times winner of the award marks Brazil – class automotive amplifiers
6 Countries with projects around the world, we continue to expand | 27 Years of Experience with a lot of history to tell, the Banda presents innovative & powerful products | 100% National The entire manufacturing process of the Banda is Brazilian, which ensures flexibility & innovation | 30000 WRMS Revolutionized the Brazilian amplifier market w/ products never before seen | For this passion we have for what we perform, develop & produce, many in the market tell us that “Banda is Banda”.
