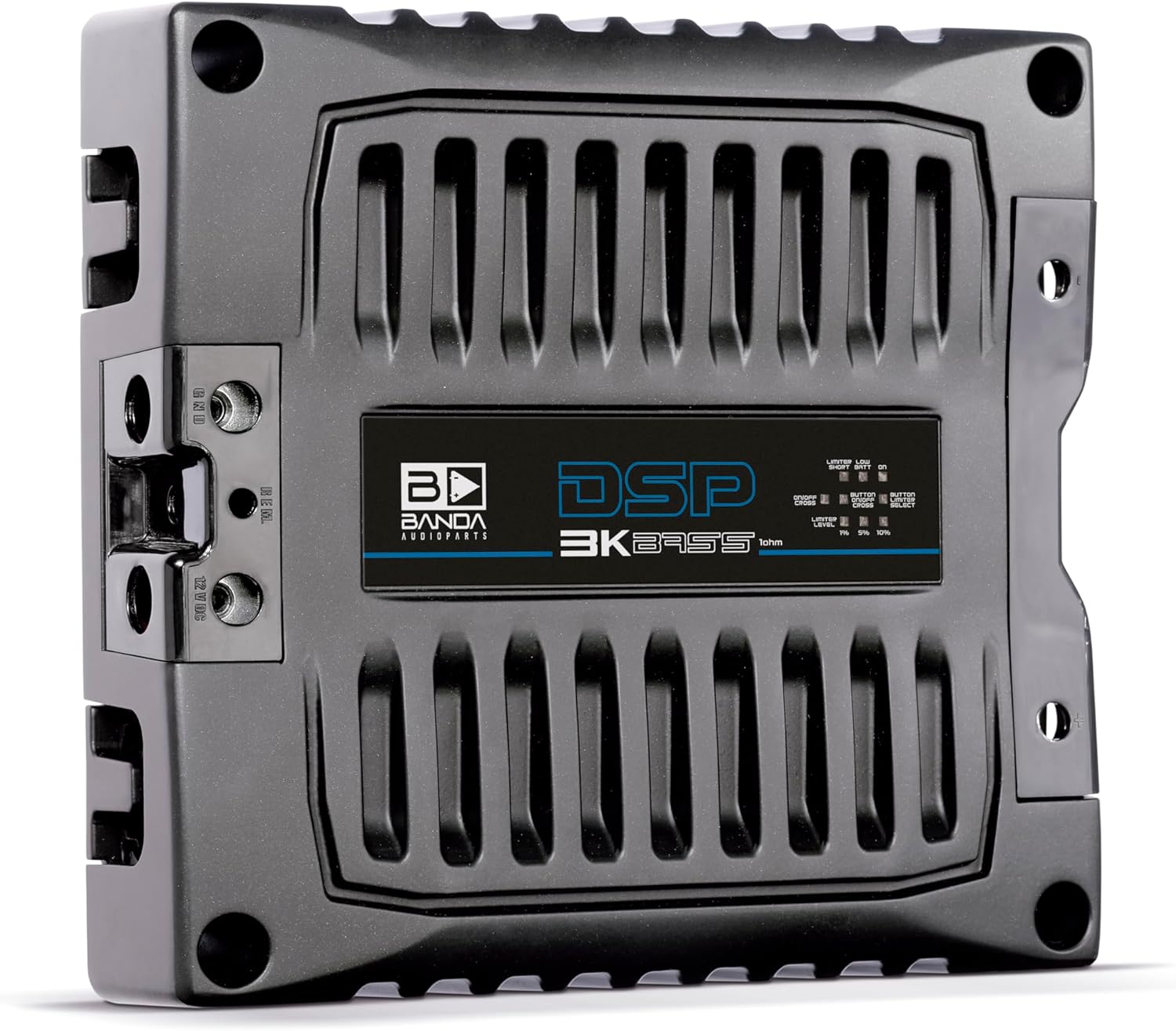

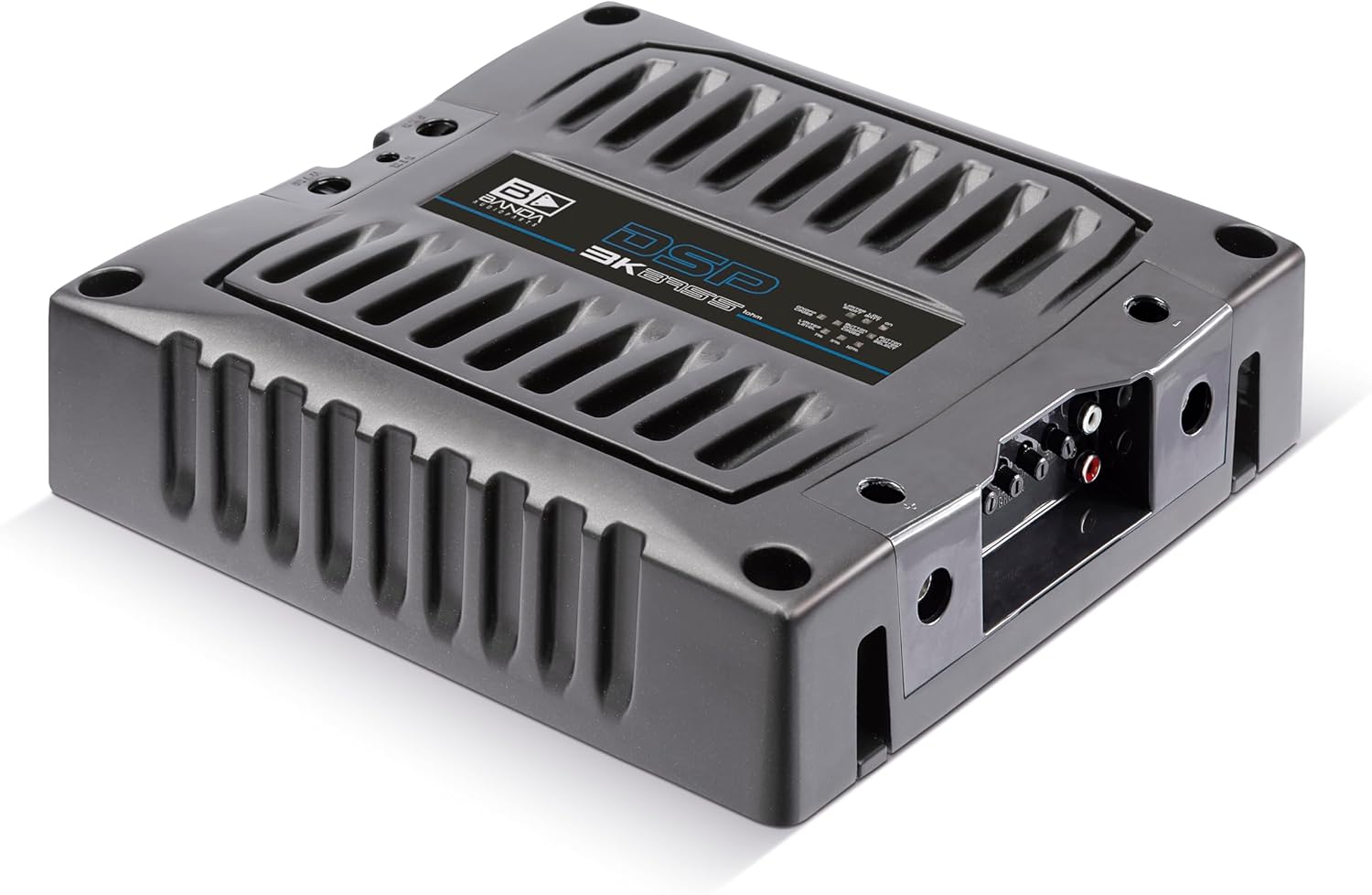

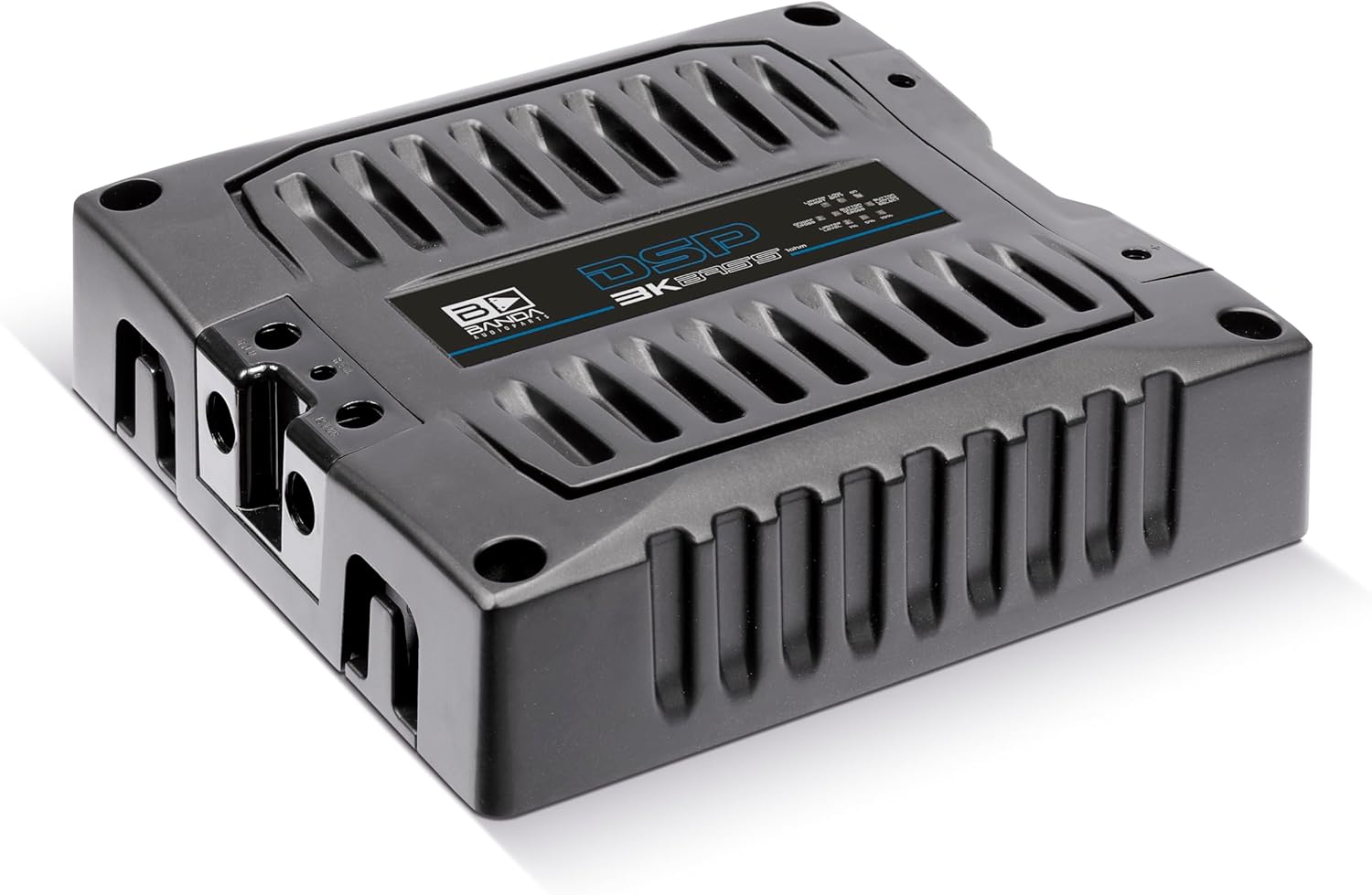

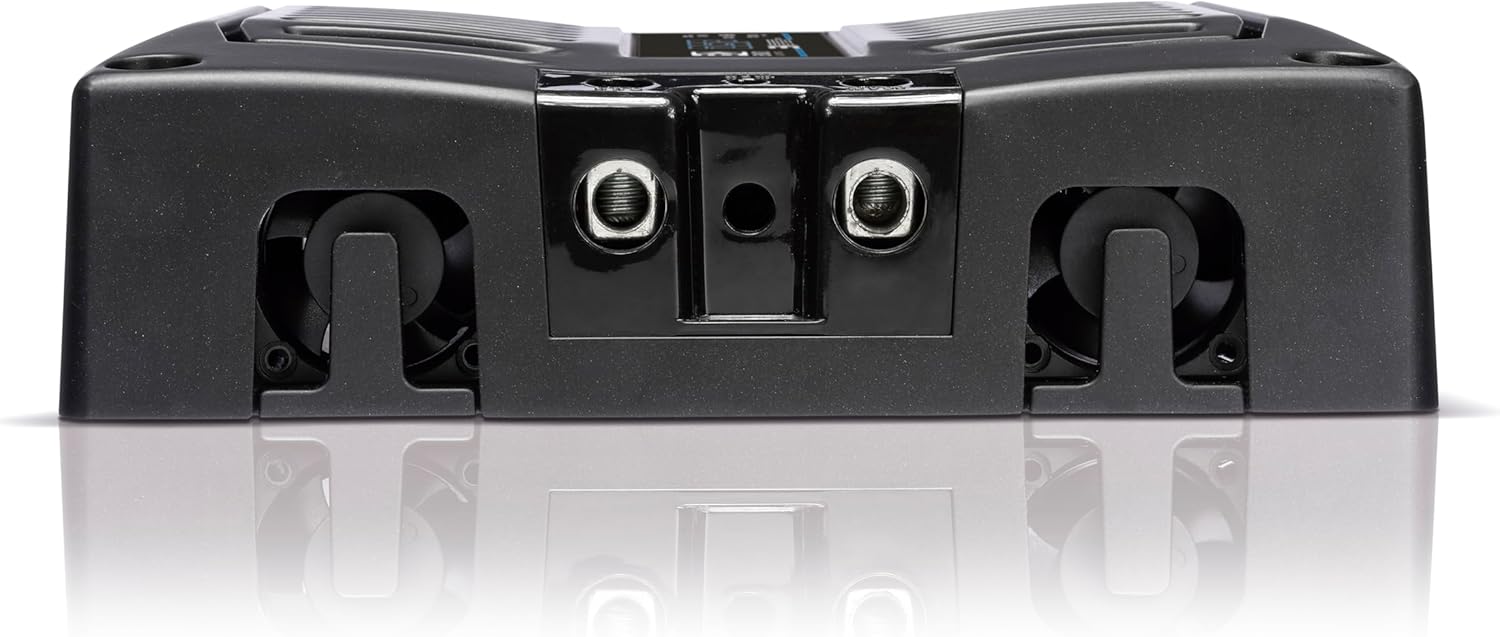

BANDA Audioparts DSP3K1BLACKBASS Bass Band Amplifier Module

BANDA Audioparts DSP3K1BLACKBASS Bass Band Amplifier Module 3k1 3000wrms 1-Ohm 1 Channel Car Audio Amp DSP BASS Model With 3 Limiter Integrated Level Positions – DSP3K1 || GENERAL || Brand : Banda Audioparts || Model Number : DSP3K1 | DSP3K1BLACKBASS || Color : Black || UPC : 7898713131561 || ITEM DIMENSIONS || – Weight (Kg) : 3.7 | 8.16 lbs. || – Height (mm) : 63 | 2.48 in. || – Width (mm) : 225 | 8.86 in. || – Depth (mm) : 236 | 9.29 in. || || Dsp Band Amplifier Module 3k1 3000wrms 1 Ohm With Limiter Color Black’ is a DSP BASS model with Limiter integrated into the amplifier, providing more security and savings for the system. Limiter settings do not vary with system voltage drops, making it safer and more accurate, preventing speaker burnout and saving energy. There are 3 LIMITER LEVEL positions: 1%, 5% and 10%, which can be selected using the touch switch. || || TECHNICAL SPECIFICATIONS || – Maximum Power 12.6v @ 1 Ohm : 1 x 3500 WRMS || – Maximum Power 12.6v @ 2 Ohms : 1 x 2100 WRMS || – Efficiency : 76% || – Input Voltage : 9 – 15V || – Input Impedance : 100K Ohms || – THD+Noise : min. 1.5% max. 7.5 || || – Input Sensitivity : 300mV – 8V || – Signal to Noise Ratio : 80dB || – Frequency Response : 22Hz – 1000Hz || – Bass Boost : 30 – 80Hz from 0 to 12dB || – HPF (SUBSONIC) : 22 – 65HZ – LPF (Crossover) : 80 – 250Hz || – Recommended fuse : 150A || – Resting Current : 2.5A || || – Maximum Current (musical signal) : 220 A || – Maximum Current (sine signal) : 440 A || – Power Cables (recommended minimum) : 50mm ||
“GENERAL || Brand : Banda Audioparts || Model Number : DSP3K1 | DSP3K1BLACKBASS || Color : Black || UPC : 7898713131561 || ITEM DIMENSIONS || – Weight (Kg) : 3.7 | 8.16 lbs. || – Height (mm) : 63 | 2.48 in. || – Width (mm) : 225 | 8.86 in. || – Depth (mm) : 236 | 9.29 in. ||
Dsp Band Amplifier Module 3k1 3000wrms 1 Ohm With Limiter Color Black’ is a DSP BASS model with Limiter integrated into the amplifier, providing more security and savings for the system. Limiter settings do not vary with system voltage drops, making it safer and more accurate, preventing speaker burnout and saving energy. There are 3 LIMITER LEVEL positions: 1%, 5% and 10%, which can be selected using the touch switch. ||
“TECHNICAL SPECIFICATIONS || – Maximum Power 12.6v @ 1 Ohm : 1 x 3500 WRMS || – Maximum Power 12.6v @ 2 Ohms : 1 x 2100 WRMS || – Efficiency : 76% || – Input Voltage : 9 – 15V || – Input Impedance : 100K Ohms || – THD+Noise : min. 1.5% max. 7.5 ||
” – Input Sensitivity : 300mV – 8V || – Signal to Noise Ratio : 80dB || – Frequency Response : 22Hz – 1000Hz || – Bass Boost : 30 – 80Hz from 0 to 12dB || – HPF (SUBSONIC) : 22 – 65HZ – LPF (Crossover) : 80 – 250Hz || – Recommended fuse : 150A || – Resting Current : 2.5A ||
” – Maximum Current (musical signal) : 220 A || – Maximum Current (sine signal) : 440 A || – Power Cables (recommended minimum) : 50mm ||
